QDS2-51-0806-2170-01
Suspended StripLine Combiner
Applications
• Commercial Base Station
Features
•Suspended StripLine Designs
• Low Insertion Loss
• High Reject
• High Power

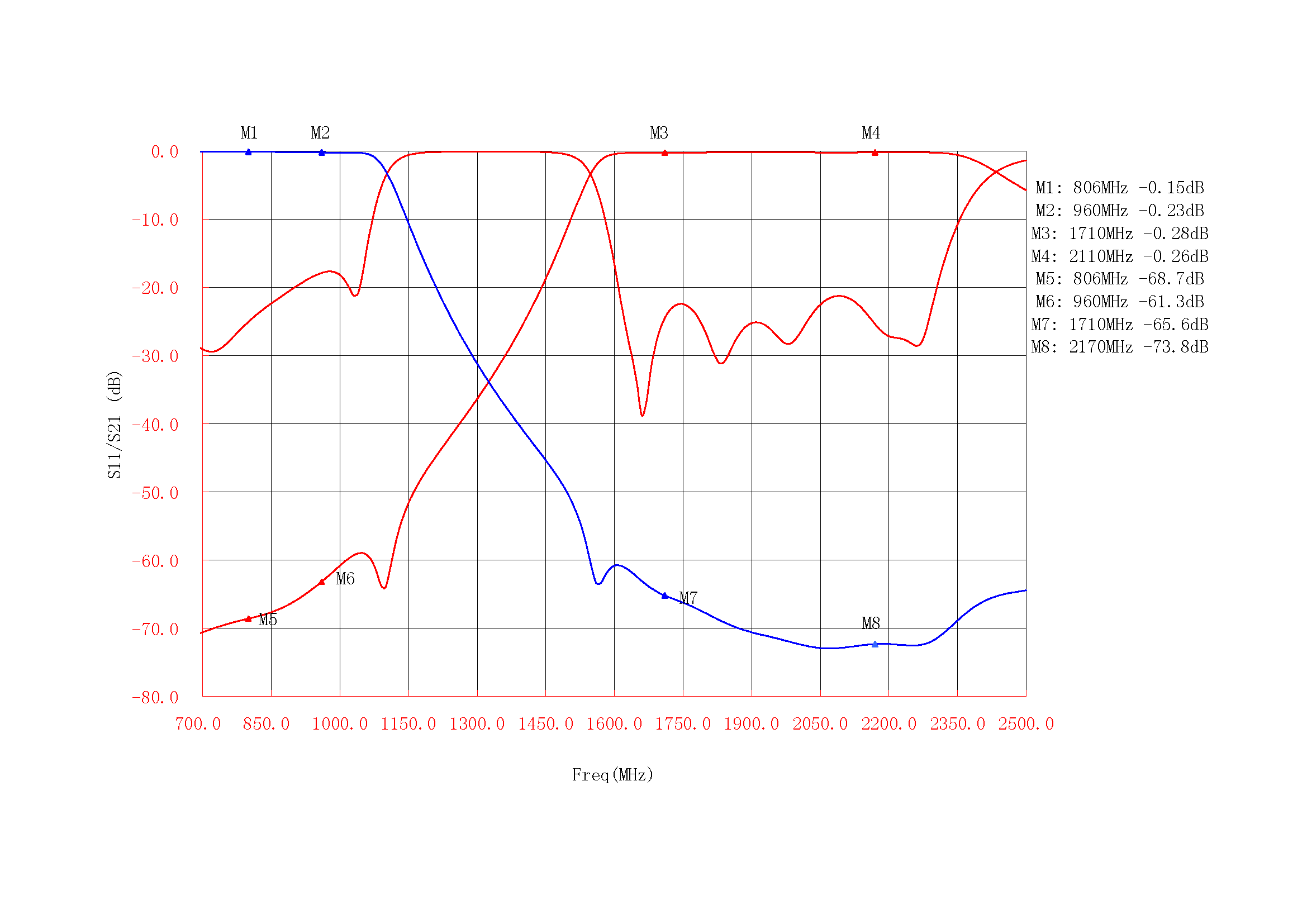

Specifications
|
|
Low Band |
High Band |
|
Frequency Band (MHz) |
806-960 |
1710-2170 |
|
Insert Loss (dB) |
0.3 |
0.35 |
|
Low Band/High Band isolation, (dB) |
55 |
55 |
|
Return Loss, (dB) |
16 |
16 |
|
Pass Band Ripple (dB) |
0.2 |
0.2 |
|
DC Pass |
OK |
|
|
IMD3, (@2×43dBm) （dBc） |
152 |
152 |
|
Max. power handling in high/LOW band port, continuous （W） |
300 |
300 |
|
Max. power handling in common port continuous （W） |
600 |
|
|
Connector |
7/16-Female | |
|
Impedance (Ω) |
50 | |
|
Storage Temperature Range (℃) |
-90 | |
|
Operation Temperature Range (℃) |
-85 | |
