Band 1

Band 2

Band4

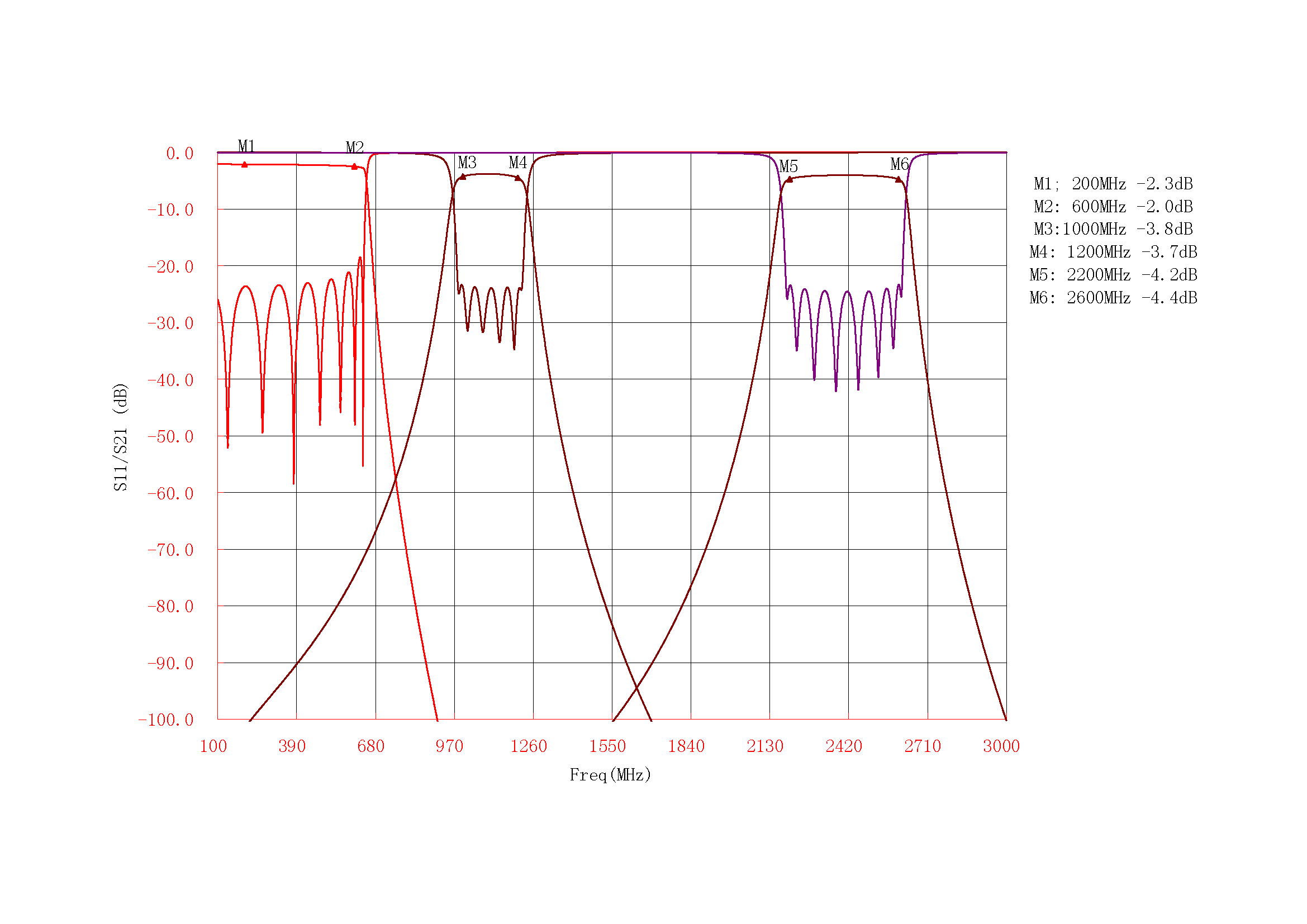

Pass Band Frequency (MHz)

200~600

1000-1200

2200-2600

Insertion Loss @ Center Frequency (dB)

4.0

4.0

5.0

Isolation between Bands (dB)

60

RF Power Handling (dBm) Max.

0dBm

Switching time (ns) Max

500

Switching Control Logic （V）

TTL (3.3V)

DC Power （V）

5

RF  Connector

SMA(F)

Switching Control Connector

PIN

Outline Dimension (mm) Max

14mm  x 130mm x 60 mm

Operation Temperature  ℃

-40~85
