QFC1-21-1787-1803-00
Satellite Communication Filter
Applications
• Satellite Communication
Features
• Coaxial Resonator Designs
• Low Insertion Loss
• High Reject
|
Description |
|
|
Frequency Range |
1787-1803MHz |
|
Insertion Loss |
≤3.0dB |
|
Return loss |
≥9.5dB |
|
Attenuation |
1807- 1880MHz≥30dB |
|
|
1705- 1783MHz≥30dB |
|
Impedance |
50 Ohm |
|
Input power |
500mW (min) |
|
Connector Type |
N-F |
|
Operating temp |
-45℃～+85℃ |
|

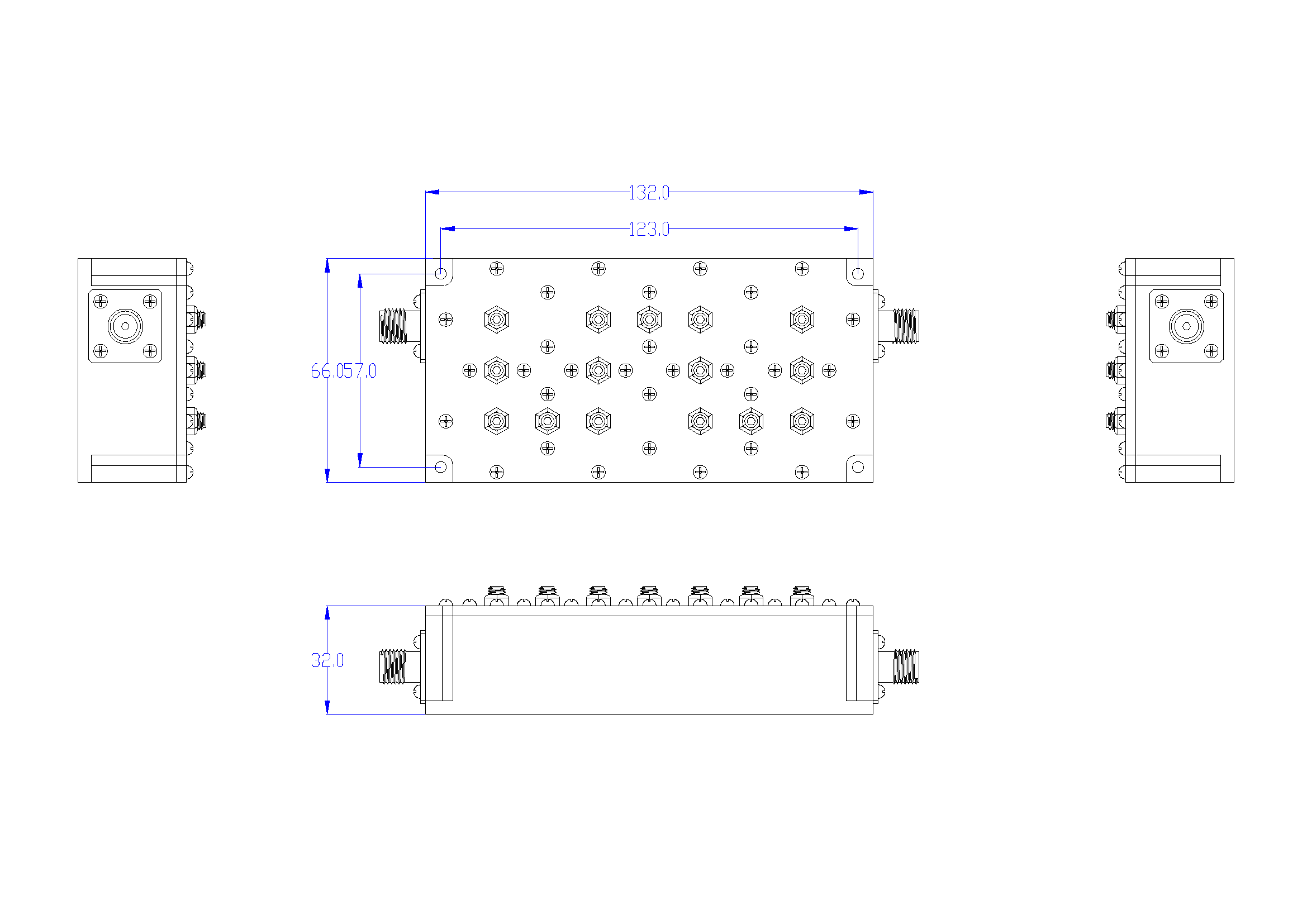

Volume |
147mm*80mm*40mm |
