Applications
• Satellite Communication
Features
• Coaxial Resonator Designs
• Low Insertion Loss
• High Reject
• High Power

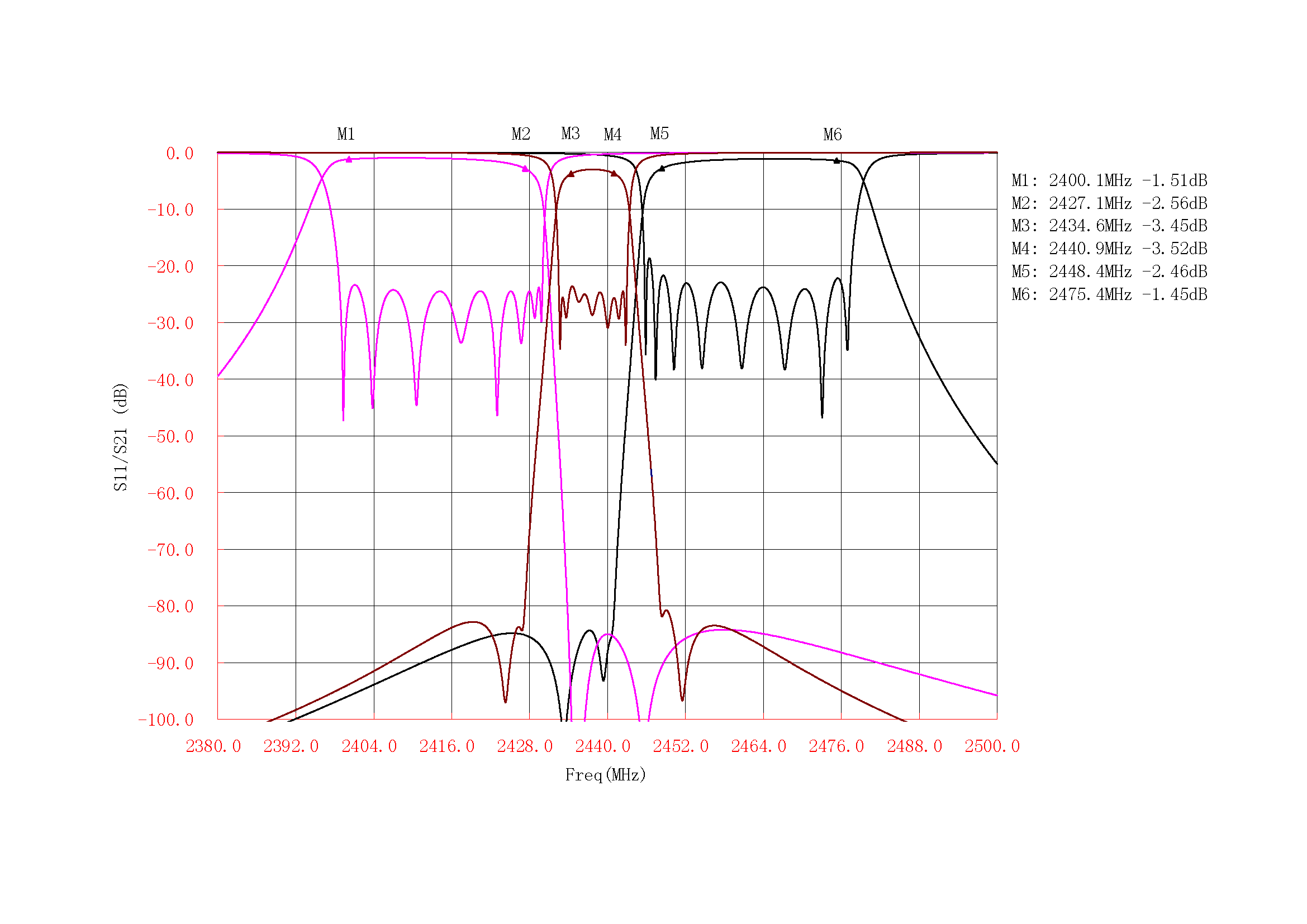

Specification
|
|
CH1 |
CH2 |
CH3 |
|
Frequency Range (MHz) |
2400.1-2427.1 |
2434.6-2440.9 |
2448.4-2475.4 |
|
Center frequency (MHz) |
2413.6 |
2437.75 |
2461.9 |
|
3dB Bandwith (MHz) |
27 |
6.3 |
27 |
|
Insertion loss (dB) |
≤3.2 |
≤4.0 |
≤3.2 |
|
VSWR |
≤1.3 |
≤1.3 |
≤1.3 |
|
Band rejection (dB) |
≥75 |
≥75 |
≥75 |
|
Power Handing (W) |
>10 |
>10 |
>10 |
|
Impedance (Ω) |
50 | ||
|
Connector Type |
N(F) | ||
|

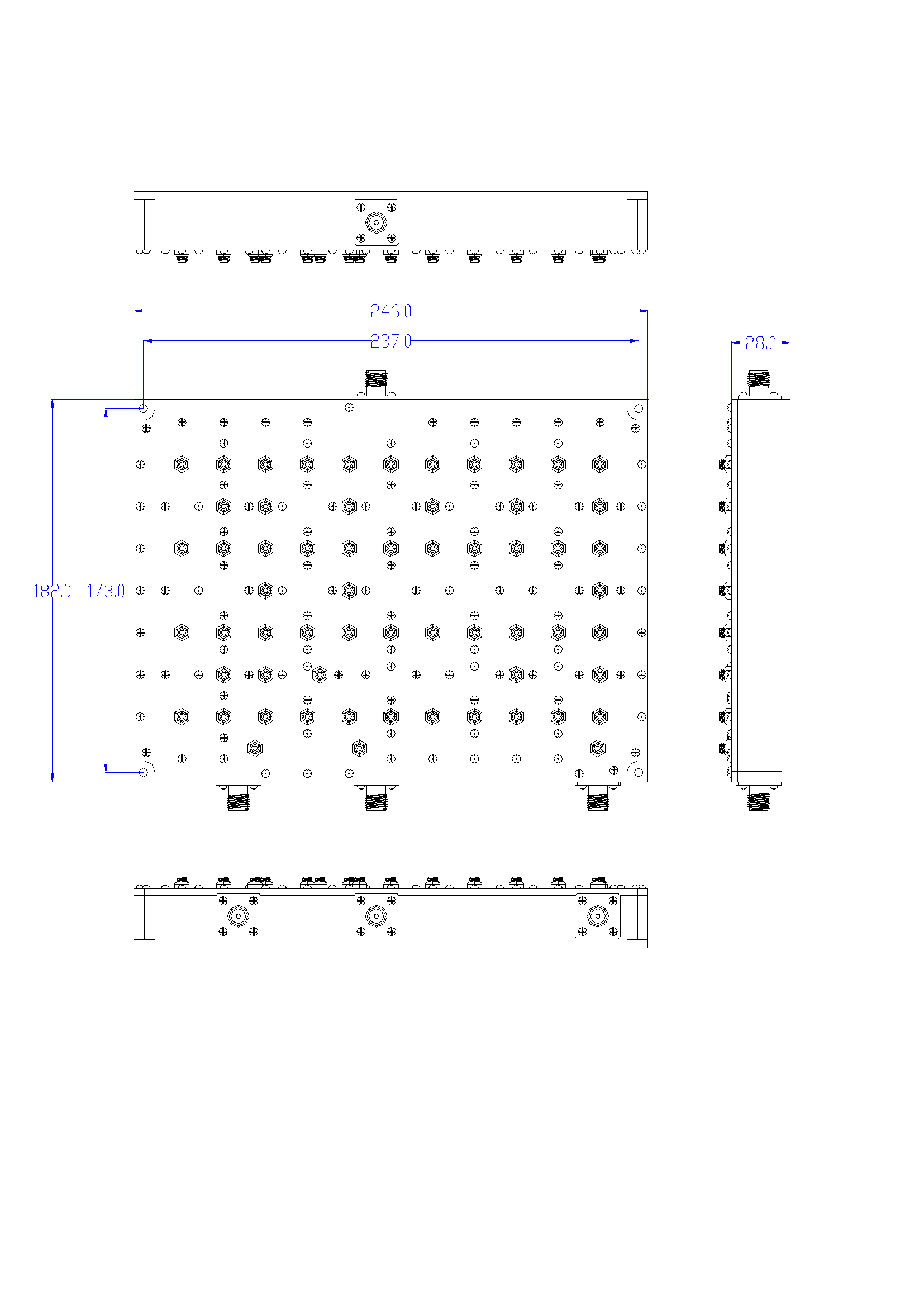

Dimension (mm) |
246*182*28 | ||
|
Operating Temp. (℃) |
-30~70 | ||
